Solar Dryer

Product Description

The Clean Energy Shift in Indias Agricultural Landscape

India is one of the world's largest producers of agricultural commodities, including fruits, vegetables, spices, and medicinal herbs. However, the country faces a major hurdle: post-harvest losses. Due to high tropical humidity, a lack of local cold-chain infrastructure, and seasonal market gluts, a significant portion of fresh produce spoils before it ever reaches consumers.

Traditional sun drying on open ground has long been used to preserve crops, but it leaves food exposed to dust, rain, bird droppings, stray animals, and insect infestation. Furthermore, direct open exposure to harsh ultraviolet (UV) radiation breaks down delicate vitamins, bleaches natural colors, and ruins original flavors.

To solve these widespread challenges, Rudra Solar Energy Pvt. Ltd.established in 2006 in Ahmedabad, Gujaratengineered an advanced lineup of specialized Solar Dryers specifically designed for India's diverse climatic conditions. By moving away from primitive open drying and embracing clean, sealed solar thermal dehydration, Indian farmers, Farmer Producer Organizations (FPOs), and agricultural entrepreneurs can easily extend crop shelf life to 612 months, eliminate waste, and secure top prices in retail and export markets.

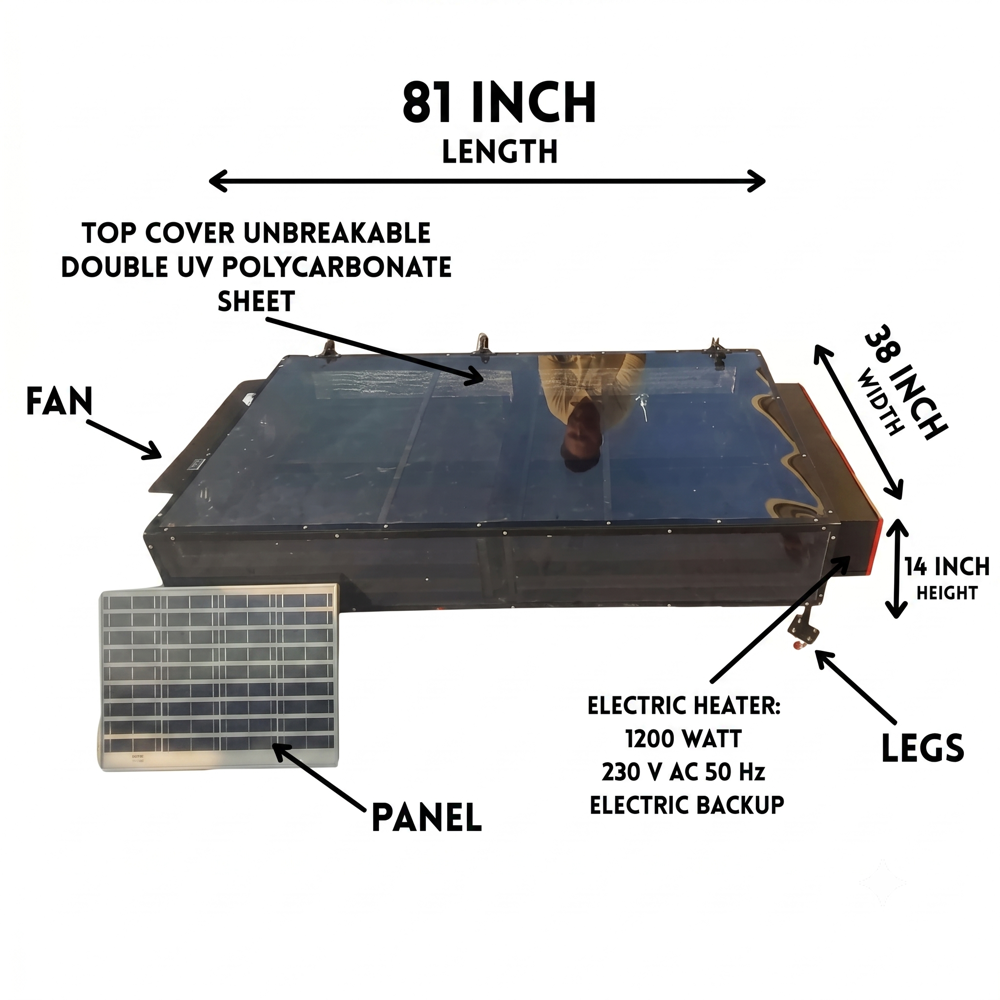

Technical Specifications & Engineering Design

Rudra Solar Energy manufactures its systems in a modern facility using high-precision CNC laser cutting and CNC bending machinery to ensure long-lasting structural strength. The engineering architecture is chosen to withstand rugged Indian field conditions while fully satisfying global food safety standards:

Thermodynamic Principles & Moisture Extraction

Rudra Solar Dryers do not simply rely on ambient warm air to passive dry the product. Instead, they use a scientifically calculated three-mode heat transfer system that combines radiation, conduction, and forced convection to achieve an impressive peak drying efficiency of 63% to 68%:

 [ Solar Shortwave Radiation ] Double UV-Filtered Polycarbonate Cover Prevents color bleaching Absorber Coating High-Conduction on Inner Body Perforated Trays [ Greenhouse Effect ] [ Conductive Heat ] (Converts light to heat, (Direct metal contact raising internal temp heats the underside up to 80C securely) of food products) Forced Convection (12V Solar DC Fans) Sweeps moisture out at 4 kg/day per sq. m.

1. Solar Thermal Conversion (The Greenhouse Effect)

When the unit is placed in direct sunlight, the unbreakable polycarbonate top cover allows shortwave solar light energy to pass freely into the enclosed chamber. This light is absorbed by the internal high-absorptivity black powder coating and converted into longwave thermal energy (heat). Because longwave heat radiation cannot pass back through the polycarbonate cover, the heat becomes trapped inside, creating a powerful greenhouse effect. This elevates internal drying cabinet temperatures by 30C to 40C above outside conditions, reaching an ideal operating temperature window of 50C to 80C.

2. Contact Conduction via Tray Engineering

The food pieces are laid out on high-conductivity perforated metal trays. As the solid metal trays heat up within the cabinet, they transfer thermal energy directly to the underside of the produce slices via contact conduction. This uniform heating from both the top (via ambient radiation) and the bottom (via conduction) drastically speeds up moisture extraction and prevents case hardening.

3. Forced Convective Moisture Sweeping

As moisture leaves the sweet potato, fruit, or spice slices, the air inside the chamber quickly becomes humid. To prevent saturation, the drying cabinet uses 12V DC brushless axial fans powered entirely by an external solar PV panel. These fans continuously draw fresh air through intake dust filters, circulate it evenly across the perforated trays, pick up the evaporated moisture, and expel the humid air out through exhaust vents protected by fine insect mesh. This forced convection results in a high moisture removal rate of 4 kg per day per square meter of drying area.

Scaled Model Portfolio for Indian Processors

Rudra Solar Energy fabricates a wide array of options tailored to the diverse volume requirements of domestic kitchens, rural self-help collectives, and large corporate agricultural processing lines:

Off-Grid "Only Solar" Models

These units run completely off-grid, requiring zero external grid electricity. They rely entirely on solar radiation for heating and use the included solar PV panel to run the convective fans, making them perfect for remote Indian farm locations.

• RSDAL1TAL (2.5 kg Capacity): Incorporates 1 tray ($3.6\text{ sq. ft.}$ drying area) alongside a compact 3W solar panel. Designed for home startups and kitchen experiments.

• RSDAL2TAL (5 kg Capacity): Incorporates 2 trays ($7.2\text{ sq. ft.}$ drying area) with an 11-inch cabinet depth.

• RSDAL4TAL (10 kg Capacity): Incorporates 4 trays ($14.4\text{ sq. ft.}$ drying area) with a 10W, 12V solar panel.

• RSDAL6TAL (15 kg Capacity): Incorporates 6 trays ($21.6\text{ sq. ft.}$ drying area) built within a 21-inch cabinet profile.

• RSDAL8TAL (20 kg Capacity): Incorporates 8 trays ($28.8\text{ sq. ft.}$ drying area) coupled with a 30W solar panel.

• Commercial Scaled Systems: Features the RSDAL12TAL (30 kg), RSDAL18TAL (50 kg), RSDAL24TAL (75 kg), RSDAL30AL (100 kg), and the industrial-scale RSDAL150TAL (500 kg) module.

Grid-Integrated Hybrid Models

To ensure processing doesn't stall during Indias intense monsoon seasons or long, overcast winters, Rudra integrates an auxiliary Electric Backup (EB) heating circuit. These hybrid units contain an integrated electric heater (1200W to 6000W) and AC-powered fans that switch to standard 230V AC grid power at the flick of a button, letting processors run continuous 24/7 night shifts or rainy-day operations without interruption.

• Available Hybrid Scaled Models: RSDAL4TALEB (10 kg), RSDAL6TALEB (15 kg), RSDAL8TALEB (20 kg), RSDAL12TALEB (30 kg), RSDAL18TALEB (50 kg), RSDAL24TALEB (75 kg), RSDAL30ALEB (100 kg), and the heavy-duty RSDAL150TALEB (500 kg).

Universal Crop Pre-Treatment & Operational Guide

To produce clean, premium-grade dehydrated products that meet international food safety benchmarks, processors follow a structured step-by-step processing workflow:

1. Sorting and Deep Washing

Harvested raw items are sorted to discard bruised or overripe specimens. The healthy items are washed thoroughly under clean running water to remove dirt, mud, and chemical residues.

2. Precision Slicing & Tray Laydown

Items are cut uniformly (typically 3 mm to 5 mm thick) to ensure even drying throughout the batch. The sliced pieces are laid out flat across the perforated trays in a single layer without overlapping to ensure clear, unobstructed airflow. The standard loading density is optimized at an average of 2.5 kg per tray.

3. Food Group Pre-Treatments

To preserve vibrant colors, prevent enzymatic browning, and prolong shelf life, specific pre-treatments are applied before loading:

• Blanching: Used primarily for hardy vegetables like carrots, spinach, and beans. Slices are steamed or submersed in boiling water for 12 minutes to deactivate aging enzymes, then quickly cooled in ice water to stop the cooking process.

• Acid Dipping: Ideal for fruits prone to browning, such as apples, bananas, and guavas. Slices are soaked in a mild 2% to 3% citric acid or lemon juice solution for 35 minutes.

• Sugar Immersion: Perfect for value-added fruit bars or candies made from mango, papaya, or pineapple. Slices are soaked in a 40% to 50% sugar syrup matrix for 1015 minutes before drying.

• Salt-Water Dipping: Used for vegetables like okra, pumpkin, and bitter gourd by soaking them in a 2% brine solution for 510 minutes to lower water activity.

4. Approximate Processing Timelines

The trays are slid into the cabinet rails, the doors are clamped shut, and drying begins. Approximate drying times vary by commodity type under clear sunny skies:

• Medicinal Herbs & Leaves (Mint, Tulsi, Moringa, Curry Leaves): 6 to 10 Hours at gentle heat levels (40C50C) to safeguard volatile oils.

• Fleshy Fruits & Root Vegetables (Tomato, Ginger, Mango, Carrot, Chili): 8 to 18 Hours.

• Marine Items & High-Protein Strips (Fish Fillets, Prawns, Chicken): 18 to 36 Hours at higher heat settings (70C80C) to completely stop microbial growth.

5. Ambient Stabilization & Airtight Sealing

Once dried, products must cool completely to room temperature before packaging. Packing warm food creates internal condensation, raising moisture levels and causing mold outbreaks inside the bag. The cooled products are placed in moisture-barrier pouches and sealed with a heat sealer immediately.

Socio-Economic & Environmental Footprint across Bharat

Rudra Solar Energy's technology delivers substantial, measurable impacts across Indias rural and environmental landscape:

• Preventing Food Waste: By providing clean drying technology at the rural farm gate, Rudra dryers have prevented over 100,000 Metric Tons of high-quality agricultural yield from rotting during seasonal market gluts.

• Carbon Emissions Reduction: By shifting processors away from grid-heavy conventional mechanical dehydrators or fossil fuels, their installed solar dryers have reduced more than 100,000 Metric Tons of greenhouse gas emissions.

• Empowering Communities: Through partnerships with major developmental organizations like the SELCO Foundation, Villgro, and CEEW, Rudra has helped establish over 1,000 independent rural entrepreneurs and agricultural startups. This has created sustainable livelihood opportunities for smallholder farmers, tribal communities, and womens self-help collectives throughout India.

Core Operational Advantages

1. Total Isolation from Contamination: The fully enclosed cabinet design keeps food items safe from wind-blown dust, rain, pests, flies, and animal contact.

2. Nutritional and Color Preservation: The double UV-filtering polycarbonate cover stops product bleaching, ensuring delicate vitamins, vibrant natural colors, and rich aromas stay intact[cite: 1, 2].

3. Rugged, Long-Lasting Build: The low-maintenance, rust-proof aluminium framework has a structural lifespan of 20 years, engineered to easily withstand heavy monsoon downpours and high wind speeds up to 150 km/h[cite: 1, 2].

4. True Plug-and-Play Assembly: Systems ship fully tested and assembled from the factory, meaning users don't need specialized technicians or complex tools to start operating[cite: 1, 2].

By bridging the gap between clean solar thermal engineering and strict food manufacturing safety standards, Rudra Solar Energy Pvt. Ltd. delivers an optimized solution that empowers Indian agricultural processors to create sustainable, premium value-added food products for the future[cite: 1, 2].
